Description
Tron protector
- Remove balls and raise the playfield to the service position.

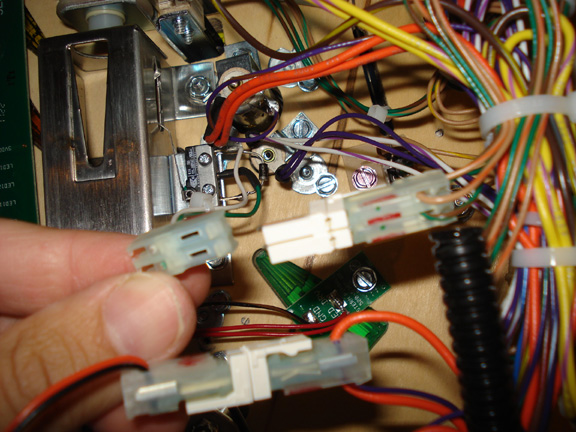

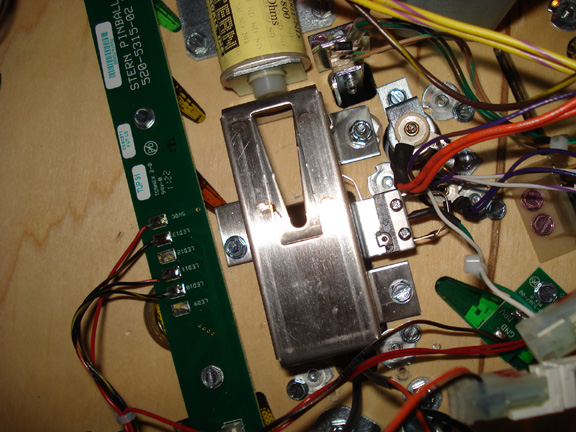

- Locate the scoop and disconnect the 2 pin wire connector of the switch (green and white wires).

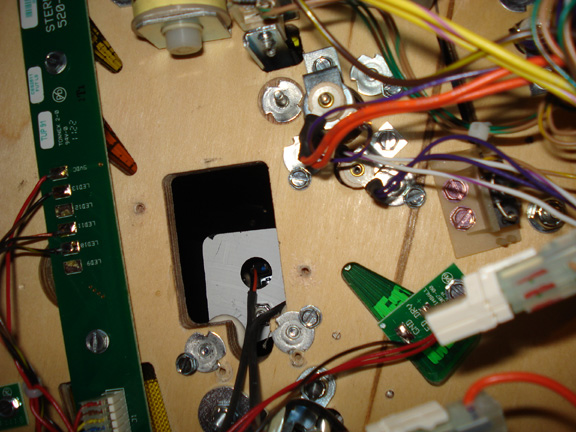

- Remove the 2 pan head screws and 1 nylon locking nut holding the scoop in place and remove the scoop from the machine.

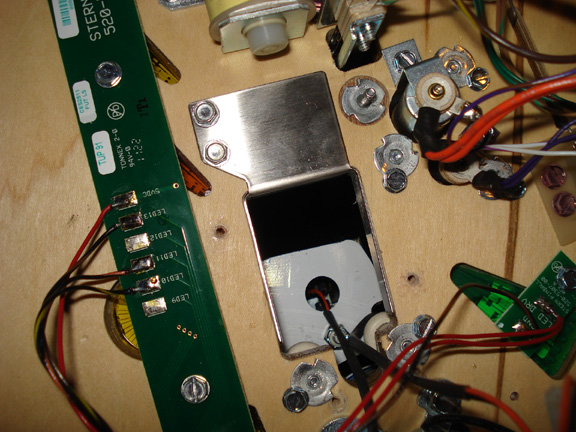

- Mount the protector in position being sure to press fit it tighly against the walls of the hole.
- Use 2 pan head screws to mount the protector to the playfield.

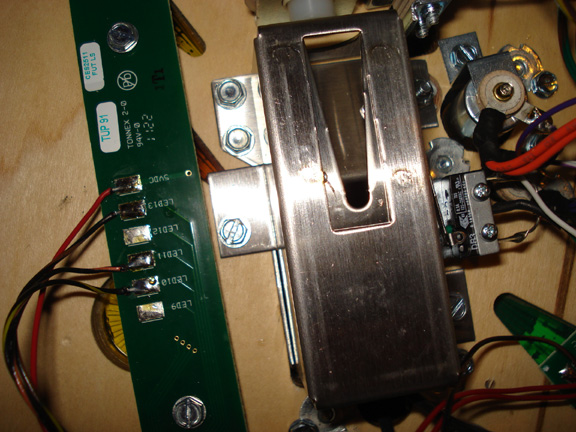

- Remount the scoop.
- Reconnect switch connector.
- Lower the playfield, return the balls to the trough and play.

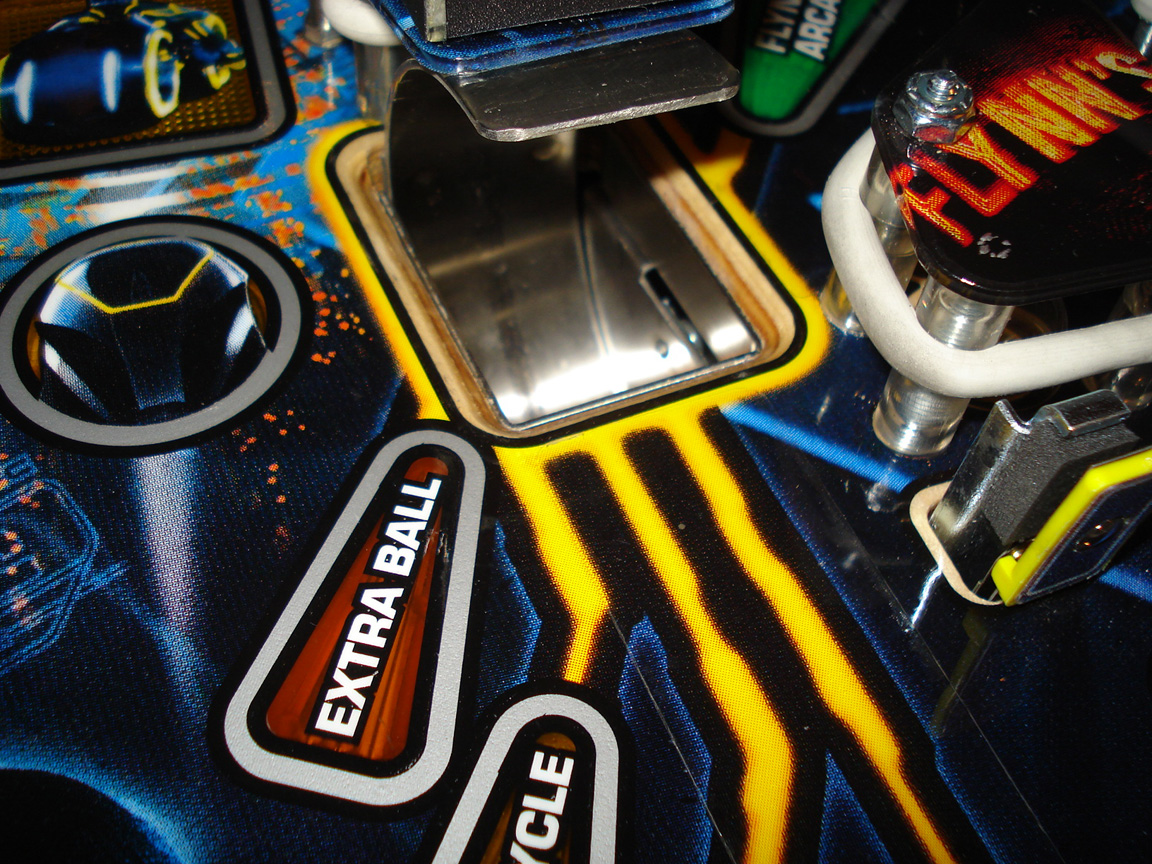

- Should look like this when done!
